Galaxy 5 Section Treatment Table XL

***Upholstered products can take multiple weeks to be fully assembled and shipped out***

Your table is the core of your practice, and with Chattanooga®, you have a trusted partner. Every detail of the Galaxy Table range has been designed, engineered and crafted to elegant, exacting standards, delivering a refined experience that maximizes patient comfort while optimizing practitioner access and ease of operation.

Galaxy Tables provide a strong, reliable, stylish and comfortable addition to your clinic. Their slim compact design allows easy access to patients and the scissor lifting frame ensures Galaxy’s minimal footprint even when raising patients. Powerful Hallotronic® actuators deliver the strength to lift the heaviest of patients, while the optional hydraulic actuation system gives the choice of complete wireless freedom.

Features

• Fold-down armrests in head section
• Adjustable head section from +40° to -70° with gas spring
• Easy access foot switch, accessible from any position around the table 360°, for simple height adjustment
• Face hole on head section with removable face hole cover
• Adjustable leg section from 0° to 90° with gas spring
• Two-layer padding with non-flammable, bio-compatible and scratch-resistant upholstery
• Powder-coated, extremely stable scissor steel frame
• 2 side brackets for fixation of stabilization belts and elastic bands
• Traction support sleeves
• Personal Authorization System with 2 safety magnetic keys
• HallotronicTM +System electric high/low height adjustment from 21 to 40 inches
• Non-slip rubber feet with 1 cm height adjustment allowing levelling of the table
• 4 directional castors with central brake and 4 legs

Specs

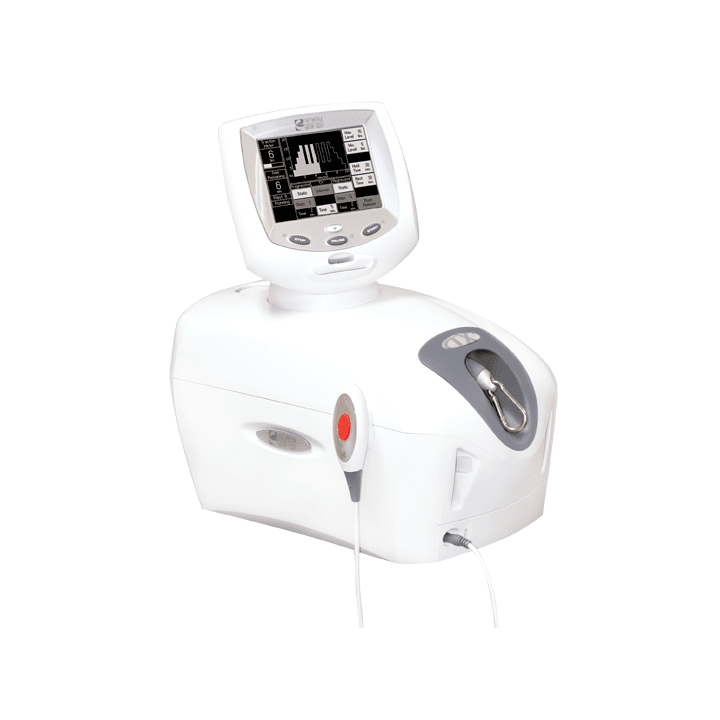

4759 - TX Traction Unit

Chattanooga Clinic Traction provides clinically proven pain treatment that gets to the root of Cervical and Lumbar Pain, allowing clinicians to mimic the feel and effectiveness of hands-on treatment using fully programmable pull patterns.

Restores function by mobilizing the muscles, ligaments and joints decompressing the nerve roots and distracting intervertebral discs

• Reduces Disc Pressure
• Relieves Nerve Root Compression
• Improves Blood Flow
• Relaxes Muscles

Graduated static, intermittent and cyclic tension options closely mimic the feel of hands-on therapy

• Controlled, consistent & repeatable traction force
• Ability to maintain clinically effective forces regardless of patient size
• Quick and easy belting provides comfortable and stable anchoring
• Multiple table adjustments to achieve ideal treatment positioning

A vital component in a comprehensive spine therapy program

• Compliments manual therapy and other modalities
• Applicable for acute, sub-acute and chronic conditions
• Reduces physical demands on the clinician
• Helps optimize patient flow efficiency in clinic

• Easy to operate
• 270° pivoting user interface
• Digital monochromatic touch screen interface
• Patient Data Cards record up to 14 treatment sessions
• Store up to 10 user defined protocols
• Intermittent, static and cyclic traction
• Progressive and regressive steps
• User-defined hold, rest and treatment times
• Traction tension parameters: 0-200 lbs
• Built-in safety features:
  - Patient Interrupt Switch
  - Cervical maximan poundage warning
  - Audible signal at the end of treatment and if Patient Interupt Switch activates

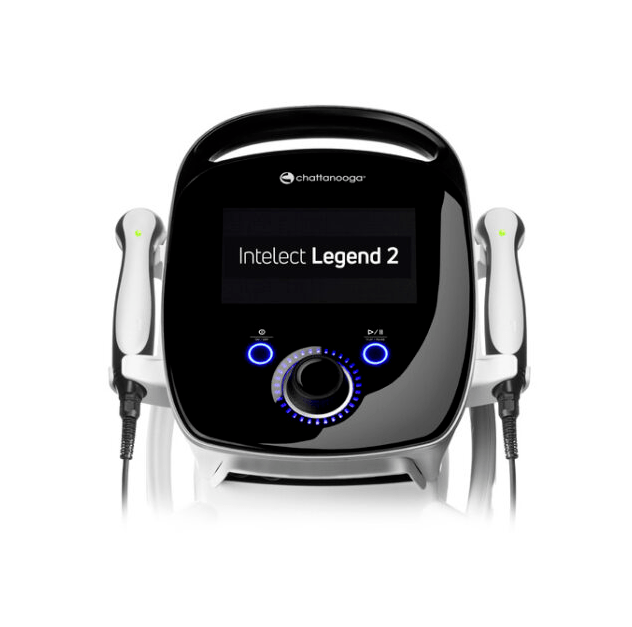

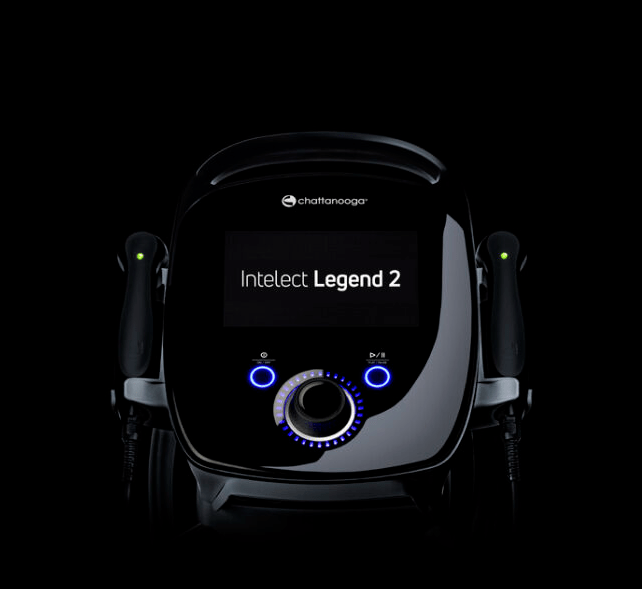

Chattanooga Intelect Legend 2

The Intelect® Legend 2 is the next generation in physical medicine
modalities. Its clever design and intuitive features make Intelect®
Legend 2 the choice for today’s modern practice. Intelect® Legend 2 offers the next generation of intuitive and intelligent user interface - designed with the therapist in mind.

• Easy to Use
- The Legend 2 Suggested Protocol Setup (SPS) menu provides
suggested electrotherapy settings which means more confidence
that your patient is receiving the most effective treatment.
• Patient Satisfaction
- Chattanooga’s proprietary VMS waveform provides stronger
muscle contractions and increased patient comfort, especially
when compared to using Russian waveform.13, 14, 15
• Better Results for Your Clinic
- Easy set up leads to reduced treatment times and allows your
clinic to be as efficient as possible resulting in a greater ROI for
your business.

2 CHANNEL COMBO
The Intelect® Legend 2 two-channel combo device is a two-channel electrotherapy, ultrasound therapy
(1 and 3 MHz) and combo system used with or without an optional cart. Twelve waveforms are included
for electrical stimulation: VMS, Interferential, Premodulation, Asymmetric Biphasic, Symmetric Biphasic,
High Volt, Microcurrent, Russian, VMS Burst, HAN, Direct Current, VMS FR. This equipment is to be used
only under the prescription and supervision of a licensed healthcare professional

4 CHANNEL COMBO
The Intelect® Legend 2 four-channel combo device is a four-channel electrotherapy, ultrasound therapy
(1 and 3 MHz) and combo system used with or without an optional cart. Twelve waveforms are included
for electrical stimulation: VMS, Interferential, Premodulation, Asymmetric Biphasic, Symmetric Biphasic,
High Volt, Microcurrent, Russian, VMS Burst, HAN, Direct Current, VMS FR. This equipment is to be used
only under the prescription and supervision of a licensed healthcare professional

TECHNICAL SPECIFICATIONS

INPUT: 100-240V AC, 1.0 to 0.42A, 50/60 Hz
ELECTRICAL CLASS: Class I
MODE OF OPERATION: Continuous

ULTRASOUND: .TYPE B
ELECTROTHERAPY: .TYPE BF

ULTRASOUND SPECIFICATIONS
FREQUENCY: 1 MHz; 3 MHz
DUTY CYCLES: 10%, 20%, 50%, Continuous
PULSE REPETITION RATE: 100 Hz
PULSE DURATION: 1 -5 ms
- Max (ON): 5 ms
- Min (OFF): 5 ms

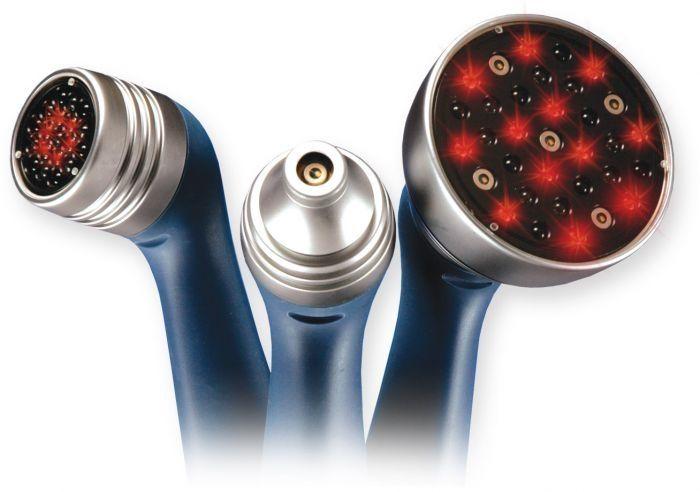

Chattanooga Laser Therapy Applicator for Vectra Genisys and Vectra Neo 27808

Features

• Laser Therapy can be controlled from the laser applicator
• Electronic Signature Recognition allows each laser applicator to be used in a "plug-and-use" format

Ideal for larger treatment areas up to 20 cm*, such as the shoulders and lower back. Twelve LEDs, sixteen SLDs and five laser diodes. All Vectra Genysis and Vectra Neo Laser Applicators are interchangeable due to Electronic Signature technology.

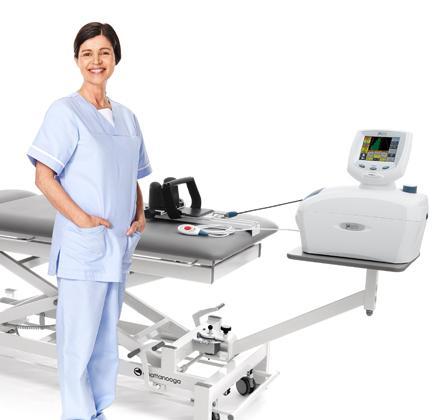

The Galaxy TTET300 is a multifunctional 3-section traction table which, in conjunction with a traction unit, allows for easy and efficient spinal traction treatment.

Galaxy Ttet-300 Traction Table comes with 3 Sections, 86.6 x 33.5 x 31.5 Inches , Surround Footbar Lift, 4 Casters

Traction treatment has been utilized for years as a safe solution in the treatment of spinal conditions involving nerve root compression, acute muscular spasm and osteoarthritic discogenic conditions.

Stretching the spine reduces pressure on the intervertebral disc, relaxes tense muscles, relieves compression and irritation of the nerve roots and improves circulation in the area of the vertebral artery.

The TTET300’s roller-mounted surface prevents friction below the hips and legs, allowing to apply the full traction force during vertebral treatment. In addition, because the rolling sections can be locked in place, this variable-height traction table also serves as an ideal treatment couch.

Galaxy TTET300 is available in two frame versions:

• FO frame with two feet and two small wheels
• F4 frame with four feet and four multidirectional, retractable wheels for easy transport
• Traction unit and cervical traction unit are optional and sold separately.

Features & Benefits

• Provides maximum patient comfort in prone and supine positions for both manual therapy and traction therapy
• Roller-mounted surface prevents friction below the hips and legs
• Repositional head/back section elevates to 85°
• Gas spring assists on friction-free moveable sections for easy positioning
• HalloTronic® System enables electric high/low height adjustment from 57 to 102 cm with capacity up to 200 kg

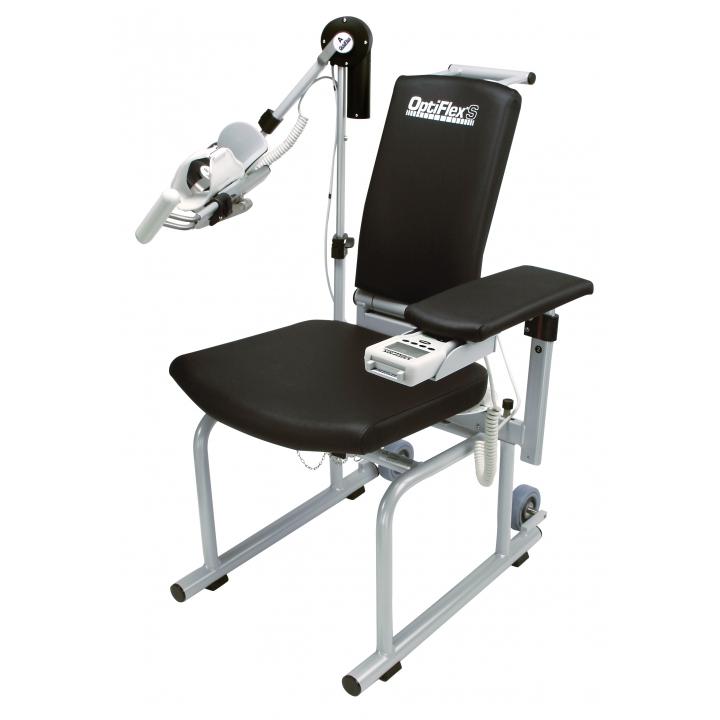

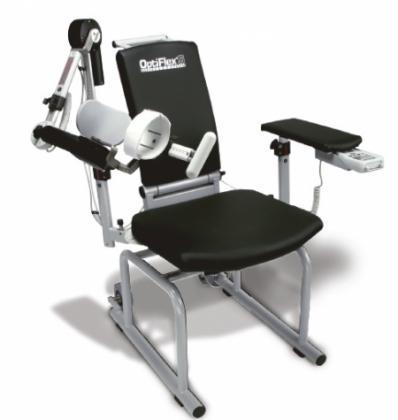

Chattanooga Optiflex S Shoulder CPM

Designed to provide anatomical motion for the shoulder, the OptiFlex S addresses a complete range of motion capabilities.

• Easy-to-use hand control for storing treatment data on memory chip card
• Fully synchronized motors allow treatment parameters to be customized to meet patient’s specific therapy protocols
• Ergonomic rest for healthy arm and fully adjustable chair
• Patented Universal left/right Shoulder design
• Folds easily for transport/shipping
• Includes patient data card and erasable pen
•

• Synchronized motors allow for customization of treatment parameters (optional to turn on/off)
• Patented universal left/right design for easy conversion
• Fully adjustable ergonomic chair that promotes shoulder stabilization
• Seat height: 48cm
• Brushless DC motor
• Pendant control with chip card technology to store and assign patient information
• Quick and easy disassembly for transport and shipping

Program Features

• Warm-up mode – the unit recognizes the start and stop angles and midpoint. From that point, motion is initiated 3 degrees from all angles until full ROM is achieved
• Reverse-on-load – unit will switch to the opposite direction when patient resistance exceeds the set value
• Patient data storage – assigns ROM, speed and treatment times per patient and notes patient set up positions
• Patient compliance meter – calculates the cumulative patient usage time
• Soft start and stop
• Multi-lingual pendant display

Tech Specs

• Lightweight design weighs 55 lbs (25 kg)
• Range of Motion:
• Adduction/Abduction: 0-30-175º
• Internal/External Rotation: 90-0-90º
• Flexion/Elevation: 0-30-175º
• Horizontal Adduction/ Abduction: 0-0-125º
• Functions:
• Motor Control: ON/OFF
• Pauses: 0-30 seconds
• Speed: 0-100%
• Timer: 0-300 minutes
• Synchronization: ON/OFF
• Therapy Run Time: hours/minutes

Triton 6E DTS Hi Lo Traction Table

(TRITON 6E TRACTION TABLE ELECTRONIC)

Features

• One of the most advanced electric traction tables, powered by modern actuators, assist in friction-free movement of head, pelvic, chest and leg sections
• Ideally positioned hand remote control allows for easy access around the table
• 6-section treatment table to provide maximum patient comfort in prone and supine positions for manual and traction therapy
• Pelvic tilt section can be adjusted from 0° to 20° to provide flexion of lumbar spine and to help address pelvic asymmetry
• Head piece can be repositioned from -30° to +40° to allow easy access to thoracic and cervical spine
• Atmospheric LED light system in table frame, with cycling or fixed modes
• Tuck-away grab bars for hanging traction without thoracic restraint
• Heated cushions provide greater patient comfort
• Easy to transport and secure once in place
• Complete range of accessories to suit every patient need

In modern medicine, spinal distraction has been utilized as a treatment option to help relieve peripheral radiation/sciatica and pain associated with various spine injuries and pathologies.

With more than 40 years of experience in the service of clinicians worldwide, Chattanooga introduces its next generation of spinal distraction treatment systems. Consisting of a three-tier portfolio, our latest range of traction tables includes the highly functional Galaxy traction line, the mid-range Triton 6M, and the optimum product in the series, the Triton 6E.

Sporting a selection of sophisticated features, the Triton 6E employs modern technology to help put the clinicians in total control with the touch of a button. Fully electric and highly adjustable, when combined with one of our Triton traction units, this premium table helps provide the best possible support for practitioners looking to push their traction treatment to the next level in innovation.

Tech Specs:
